Wire connectors are the single most common failure point in a low-voltage landscape lighting system. They sit underground, get wet, freeze, thaw, and eventually corrode. A corroded connector adds resistance to the run, which steals voltage from every fixture downstream. Bad connectors are responsible for most of the dim, flickering or dead fixture complaints on systems older than five or six years.
The good news: connectors are cheap, the fix is simple, and a connector audit on an aging system pays for itself in fewer service calls.

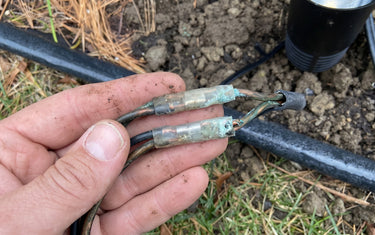

What Corrosion Looks Like
Low-voltage landscape lighting wire is copper. When copper oxidizes in moisture, you see one of three signs:
- Green or blue-green crystals on the conductor (copper carbonate, the classic sign)
- White or chalky residue on the wire (copper sulfate, often where road salt or fertilizer is nearby)
- Dark brown or black tarnish (copper oxide, the early stage)
The conductor underneath may still look pink in the very center, but if any of the three colors are visible on the outside, the connection is compromised.
How Connectors Fail
Four failure modes account for nearly every bad connector you will find.
- Water intrusion: a connector not rated for direct burial filled with water during the first heavy rain, and the wires have been corroding since
- Thermal cycling: a connector that started life sealed worked loose over many freeze-thaw cycles, then began wicking moisture
- Wire-on-wire contact in the wrong connector: twist-on caps designed for indoor 120V use are not rated for outdoor low-voltage and will fail outdoors
- Animal damage: rodents chew insulation near connectors, exposing copper to soil and water
None of these are user error in the original install if the wrong connector was used. The connector is the wrong tool for the job.
How to Audit a System for Bad Connectors
Start at the transformer and work outward. You do not need to dig up every splice; you only need to find the suspect ones.
Step 1: Find the Symptom Cluster
If fixtures past a certain point on the run are dim, the bad connector is likely between the last good fixture and the first dim one. Mark that section of the run.
If one zone runs hot at the transformer compared to others, that zone has a connector adding resistance somewhere. Mark the run.
If no symptoms are present and you just want to do preventive maintenance, focus on connectors more than eight years old or installed before you owned the property.
Step 2: Inspect Each Connector in the Suspect Area
For each connector along the suspect run:
- Gently pull on the wire just past the connector. A solid connection feels firm; a corroded one feels loose
- Inspect the outside of the connector. A connector covered in soil that you cannot wipe clean is suspect
Open the connector. The contact area should be shiny copper. Any green, white or black coloration means corrosion has started
Step 3: Replace Compromised Connectors
When you find a bad one:
- Cut the wire back to fresh, shiny copper
- Strip approximately 5/8 inch of insulation
- Twist the conductors together
- Install a new gel-filled or silicone-filled connector rated for direct burial
- Bury the new splice with a small amount of slack so thermal expansion does not pull the joint tight
Do not reuse the old connector. The internal gel that originally sealed it is contaminated. New connectors cost a few dollars and they are the entire warranty on the repair.
What to Use Instead of Twist-On Wire Nuts
For outdoor, low-voltage, direct-burial use, the appropriate connectors are:
- Gel-filled wire connectors (the gel displaces water and seals against re-entry)
- Silicone-filled tube connectors
- Heat-shrink butt splices with marine-grade adhesive lining (for two-wire splices on a single run)
Standard indoor twist-on wire nuts are not rated for direct burial. Even when wrapped in electrical tape and buried, they will eventually fail.
Prevention
When you make new connections, prevent the next corrosion event:
- Use only direct-burial-rated connectors with internal sealant
- Strip wires cleanly and keep the conductor free of dirt before connecting
- Twist conductors firmly together so there are no air gaps
- Bury splices in well-drained soil; avoid low spots that collect water
- For high-moisture sites, double-protect with a heat-shrink boot over the gel connector
When to Replace the Whole Run
If you find one bad connector, expect others nearby of the same vintage. As a planning rule, if more than 20-25% of the connectors on an inspection are compromised, the run is at end of life. Pulling fresh wire and re-splicing every connection is faster and more reliable than spot repairs.
Next Step
Start with one bad fixture or one dim section. Walk the connectors between that fixture and the transformer. The first bad connector you find usually explains the symptom. Replace it, re-measure voltage at the affected fixture, and confirm the fix before moving on.
